12v2A电源适配器规格书(桌面式)

文章来源:顾佰特电源 人气:8101 发表时间2018-12-11 15:18:04

1、描述(SCOPE):

        格书适应于12V2 A电源适配器。

        The document is to specify the functional requirements of a 24W switching power supply.

2、输入特性(INPUT CHARACTERISTICS):

     2.1输入电压(Input Voltage):

          额定电压(Nominal Voltage):100-240Vac

          调整范围(Variation Range):90-264Vac

    2.2输入频率(Input Frequency):

         额定频率(Nominal Frequency):50/60Hz

         调整频率(Variation Frequency):47-63Hz

    2.3输入电流(Input Current):

         当输入交流电压为额定值的下限时,输出电压负载满载,最大输入交流电流1.2A。1Arms max At any input voltage and rated, DC                output rated load.

    2.4浪涌电流(Inrush Current):

        当输出为额定负载,环境温度为25℃,输入240Vac冷态起动电源时的最大浪涌电流小于30A。

        30Amps Max. Cold start at 240Vac input, with rated load and 25℃ambient.

    2.5 AC漏电流(Ac Leakage Current):

          当输入电压240Vac时,最大漏电流为0.25mA。

          0.25mA Max At 240Vac input.

3、输出特性(OUTPUT CHARACTERISTICS):

     3.1输出功率(Power Output);

          电压             最小负载        最大负载         峰值电流       输出功率

          Voltage      Min. Load     Max. Load          Peak          Output Power

          +12Vdc           0A                   2A                   2.25A            24W

     3.2负载特性/调整率(Combined Load/Line Regulation):

          电压   最小空载电压  最大空载电压      线性调整      负载调整

          Voltage  Min. Voltage    Max. Voltage     Line Regulation   Load Regulation

          +12Vdc    12.00V         12.6V            ±5%            ±5%


          测试条件:任何负载正常工作下,使用示波器带宽为20MHz连接到充电器的输出端,同时输出端并连一个47uF的电解电容和一                        个0.1uF的瓷片电容。
    3.3波纹和噪音(Ripple And Noise):

         The ripple and noise are as follows when measure with Max. Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed                          connected at testing point.



                 电压                 最大波纹最大噪音

                Voltage          Ripple And Noise(Max.)

                  +12Vdc            100.0mVp-p



     3.4启动延迟时间(Turn On Delay Time):

          当输入115Vac和输出最大负载时,最大启动时间为2S。

          2 second Max. At 115Vac input and output Max. Load.

     3.5上升时间(Rise Time):

         当输入115Vac和输出最大负载时最大时间为40mS。

         40mS Max. At 115Vac input and output Max. Load.

     3.6保持时间(Hold Up Time):

         当输入115V和输出最大负载时,最小保持时间为5mS。

         5mS Min. At 115Vac input and output Max. Load.

     3.7效率(Efficiency):

         当输入100Vac和输出最大负载时,最小83%。

         83%Min.At 100Vac input and output Max. Load.

         当输入240Vac和输出最大负载时,最小85%。

         85%Min.At 240Vac input and output Max. Load.

     3.8过冲(Overshoot):

         在电源开启或关闭的时候,最大15%。

         15%Max.When power supply at turn on or turn off.

     3.9 空载损耗不大于0.5W.



4、保护功能(PROTECTION REQUIREMENT):
     4.1短路电路保护:

         Short Circuit Protection:

         该电源供给器在短路解除时,能正常工作恢复。

         The power supply will be auto recovered when short circuit faults remove.

     4.2过流保护(Over current Protection):过流故障排除后,电源将自动恢复正常工作。

         The power supply will be auto recovered when over current faults remove.

     4.3过压保护(Over Voltage Protection)

         当输出电压超过额定电压时,电源将保护,故障排除后恢复正常工作。

         The power supply will not be auto recovered when faults remove.

5、环境要求(ENVIRONMENTAL REQUIREMET):

     5.1工作温度(Operating Temperature):

         -25℃~ 45℃,满载,正常工作(Full load Normal operation)。

         -25℃to45℃,Full load Normal operation.

     5.2储存温度(Storage Temperature):-20℃to85℃,带外壳(With package).

     5.3工作湿度(Relative Humidity):

        5%(0℃)~90%(40℃),72小时,满载,正常工作

        5%(0℃)~90%(40℃)RH,72Hrs,Full load Normal operating.

     5.4振动(Vibration):

         1、测试标准:国际电工电子委员会  Operating: IEC 721-3-3 3M3

               5~9Hz,A=1.5mm 加速度(9~200Hz,Acceleration 5m/s2)
         2、运输(Transportation): IEC 721-3-2 2M2

              5-9Hz,A=3.5mm

              9~200Hz,加速度Acceleration=5m/S2

              200~500HZ,加速度Acceleration=15m/S2

         3、轴向振动(Axes,10 cycles per axis).

              在测试过程中不能出现永久性的损坏。

              No permanent damage may occur during testing.

             在电源开启和关闭后,样机能够恢复到最初条件。

            The product has to restors its original situation after power off/on.)

      5.5跌落试验(Dropping)(Packed):

          一个角,三个棱, 六个面。

         1 corner,3 edges, and 6 surfaces

         高度76cm  Height:76c

6、安全及EMC要求(SAFETY AND EMC REQUIREMENT):

      6.1安全:符合UL  CE  ROHS标准

      6.2高压(DIELECTRIC STRENGTH)(H-Pot):

      ()Primary to secondary),3000Vac/5mA/5s.

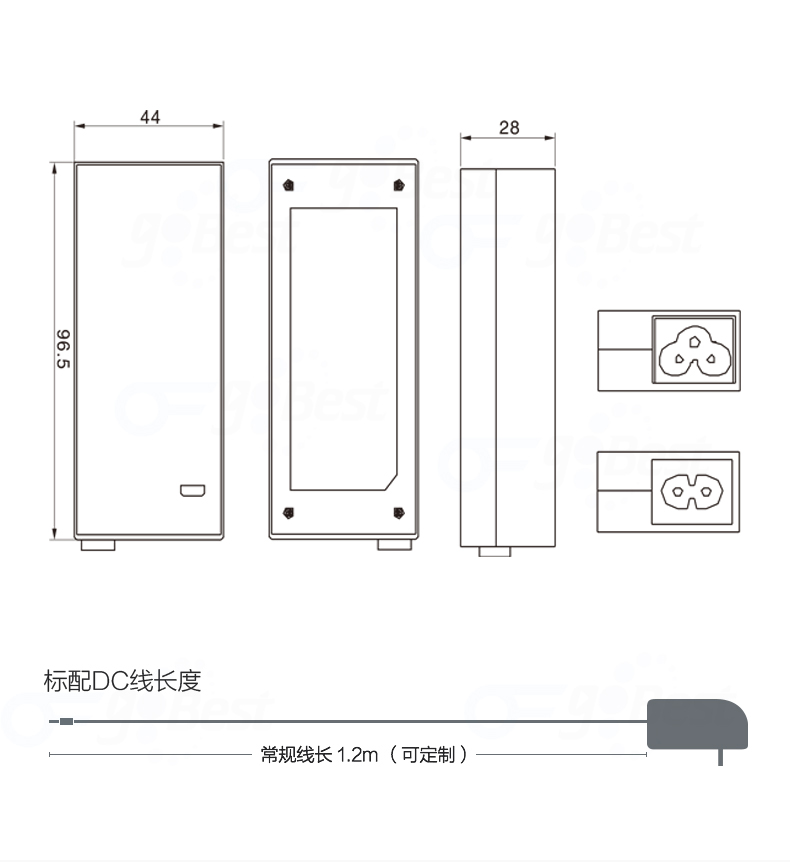

7、结构参数(MECHANICAL REQUIREMENT):

    7.1外壳(Enclosure):

        外壳尺寸:L96.5*W44*H28mm

       The power supply size L:96.5*W:44*H:28mm

     7.2输入线 (Input Connector):

       2468  2*0.75mm² 350mm

     7.3输出线

       2464  22AWG  80℃  300V  350mm

     7.4 Block Diagram
